It is not a BSP Compiler.

FuncGodot does not compile maps into BSP files. It has no concept of vis, no concept of lit, no concept of bsp. It will not automatically cull faces. Godot does not work like the early BSP engines. You cannot use FuncGodot to map for Godot the same way you map for Quake. What you map is what you get. This makes it more consistent and reliable than a compiled BSP, since you get to choose what faces get culled, how your mesh is separated, and how your collision is generated.

Map Editor Compatibility

FuncGodot directly supports the following editors with configuration resources:

• TrenchBroom 2024
• NetRadiant Custom 1.6

FGD outputs have also been tested with these editors:

• J.A.C.K.

FuncGodot is designed to be as map editor agnostic as possible. If you use an editor that can output Quake or Half-Life 1 format map files, please let us know on GitHub or Discord so we can try our best to either support it directly or document the configuration process!

Downloading the Plugin

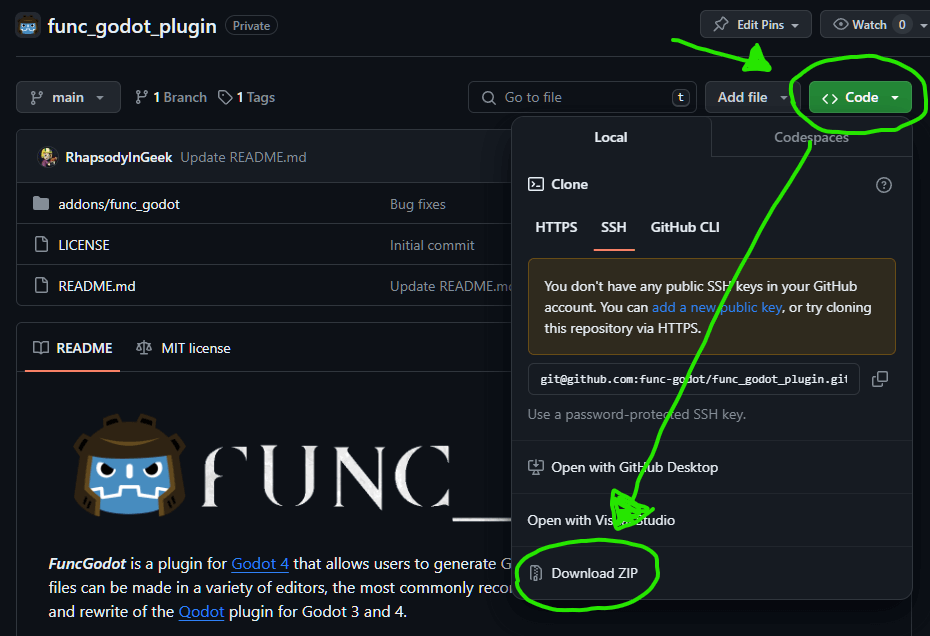

There are 3 places to download FuncGodot. The first two places are both found on the FuncGodot GitHub Repository. The first location is the Code Download, and it is always the most up to date version of the plugin. It includes all merges, including both feature updates and bug fixes. Sometimes this version can be significantly up to date, but may also contain less refined features than the other options below.

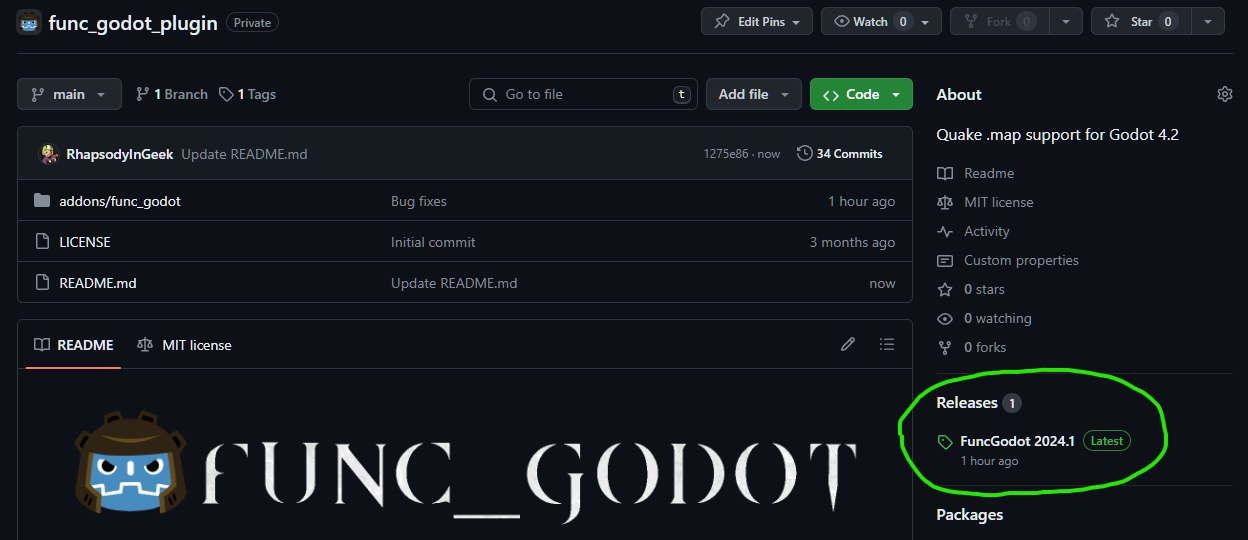

The second location is the GitHub repository's Releases. This is the second most up to date download and is considered the official "Stable Release" of the plugin.

The final location is the Godot Asset Library. While the intent is to keep the Asset Library release in line with the GitHub Stable Release, sometimes these releases can be "desynced" for one reason or another. We're a small team of volunteers here, so please be patient with us!

Our intent is to keep the Stable Releases as reliable as possible, so typically only critical fixes will be pushed with some urgency while new features or quality of life improvements tend to simmer a bit more in the code base.

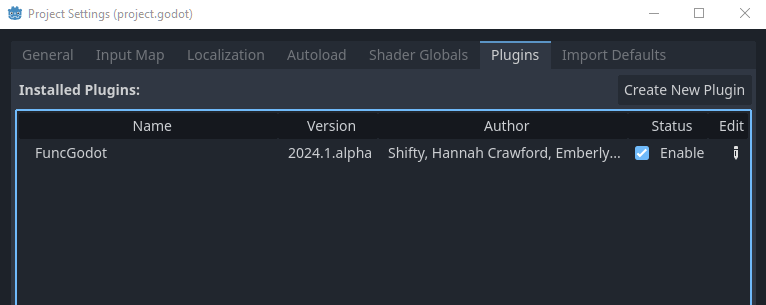

In any case, pick the download option that suits you best. If you downloaded the plugin from GitHub, extract the func_godot folder to your Godot project's addons folder. If you downloaded from the Asset Library, it should do this for you automatically. Once the plugin is copied to your project, remember to enable the plugin in your Project Settings.

FGD File Resource

Some of you may only want to build map geometry with some control over collision and occlusion, and prefer to add all of your lights, actors, scripting, etc... in Godot directly. To that end there is a basic default func_godot_fgd.tres included with FuncGodot. You can find it under addons/func_godot/fgd/func_godot_fgd.tres.

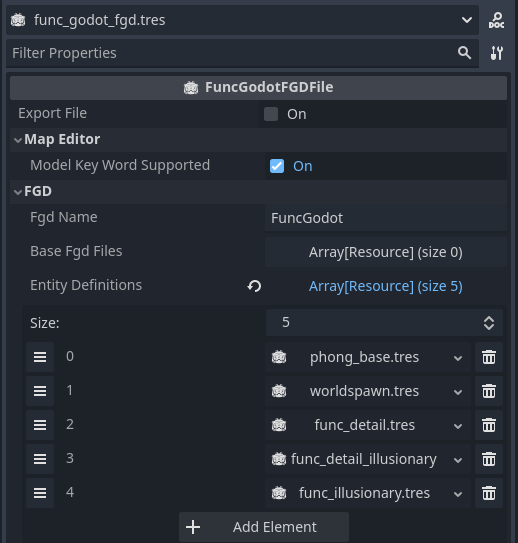

This is the default FGD file set in the FuncGodotMapSettings resource. The basic entity definitions included with it are Worldspawn, func_detail, func_detail_illusionary, func_illusionary, and Phong. We'll go over what each of these entity types are a little farther below.

But what if you want to add your own custom entity types? It's always best practice to create your own FGD File resource and NEVER a good idea to just modify the pre-existing default FGD File. Any time FuncGodot is updated, it will overwrite the func_godot_fgd.tres that comes with it and erase any changes you've made to that resource. While the goal is to keep the default FGD File as basic as possible, we cannot guarantee it won't be changed at some point in the future.

That said, it is possible to include the default FuncGodot FGD File into your own as a Base FGD. Create a new FuncGodotFGDFile resource and examine it in the inspector.

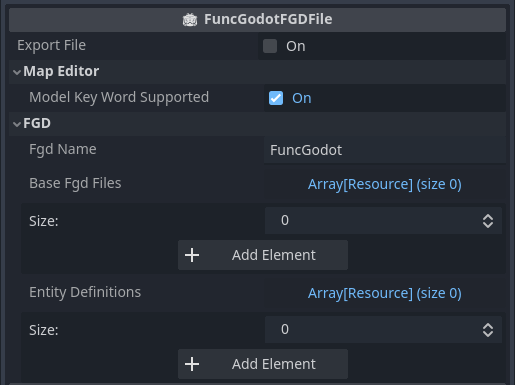

The Export File property does exactly what you might think: it generates and saves your FGD file to the Map Editor Game Config Folder set by the FuncGodot Local Config. Use this whenever you need to update your FGD.

The next property, Model Key Word Supported, is dependent upon which map editor you use. Point class entities in map editors can have display models assigned to them according to their FGD definitions. Most map editors seem to use the "studio" key word to define the model path, but TrenchBroom instead optionally allows the "model" key word while also including additional display options and expressions. When set to false, FuncGodot will omit entity definition meta properties using the "model" key word, in order to prevent errors in your chosen map editor. When exporting the FGD File through a TrenchBroom Game Config resource the setting will be overridden to true. See the Valve Developer Wiki for more information.

Fgd Name should be self evident: this will be your exported FGD's filename, minus the file extension. Best practice would be to set this to either your game's name or its acronym.

Base Fgd Files is an array of FuncGodotFGDFile resources that will be prepended to our final FGD file output. It is not necessary to export these base FGD Files; only the FGD File they are added to needs to be exported and the rest will be built by and merged into what you could consider your "Master FGD File".

NOTE: This is not where you would put your FuncGodotFGDBaseClass resources! Those are not the same as FuncGodotFGDFile resources and are considered entities! More information on FuncGodotFGDBaseClass found below.

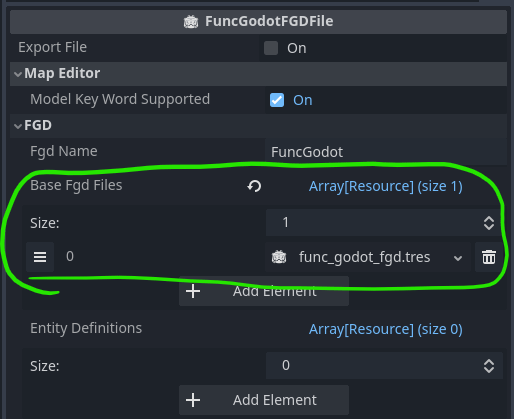

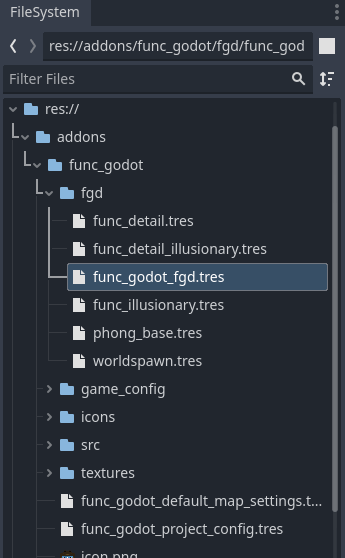

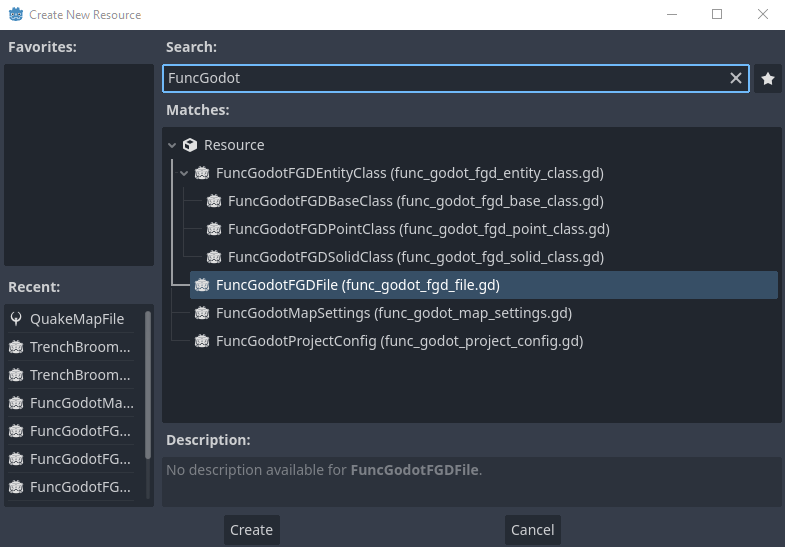

To add the func_godot_fgd.tres as a base FGD file to your custom FGD file, all you need to do is locate func_godot_fgd.tres and drag and drop it onto the Base Fgd Files array in the inspector.

The last property is Entity Definitions. This is where you'll drop all of your custom entity resources to be built or instanced by FuncGodot. Let's take a look at what a populated one looks like by viewing the default func_godot_fgd.tres in the inspector.

Entity Class Definitions

In terms of how to map with the Quake Map File > FuncGodot > Godot pipeline, it's best to think of the entities in Quake design terms. That is to say, everything is an entity: the player, the enemies, the ambient sounds, the doors, the lifts, the trigger volumes, the map geometry itself... all of these should be thought of as entities.

All map editors and FuncGodot support at least 2 different kinds of entities: Solid (Brush) Entities and Point Entities. Using FuncGodotFGDSolidClass and FuncGodotFGDPointClass resources, you can generate any type of Godot node and apply any script to it.

Every entity is comprised of 2 things: Metadata and Key Value Pairs.

Metadata tells the map editor how to display your entity, things like bounding box color or display models for Point Entities, but have no effect in Godot.

Key Value Pairs on the other hand can be thought of as your entity's properties. In a map file, all entities are comprised of Key Value Pairs. Each entity will always have a classname; this classname is what FuncGodot uses to determine what node or packed scene is generated and how upon building the FuncGodotMap.

The FuncGodotMap attempts to call two methods on each entity at the end of the build process. As an added advantage of using these calls, you can guarantee that all FuncGodotMap generated nodes now exist and can reference each other.

Modifying Entities on Map Build

If you decide you want to make modifications to your generated entities on map build using any of the following methods, you'll need to make sure that your entity's script is set as a @tool script.

The first method call is to _func_godot_apply_properties(entity_properties: Dictionary). Because _func_godot_apply_properties passes the entity properties in the function, you do not need to declare a func_godot_properties dictionary in your node script; instead, just apply your properties as needed in this callback.

After every entity has called _func_godot_apply_properties, FuncGodot will cycle through all of them again and attempt to call _func_godot_build_complete() as a deferred call. Since we're calling this method deferred after every entity has already called the previous method, we can guarantee any nodes generated by our entities in _func_godot_apply_properties can be referenced during _func_godot_build_complete.

Additionally upon building, all of the entity's key value pairs will be added to the generated node's func_godot_properties Dictionary (provided that the property is set as an exported variant).

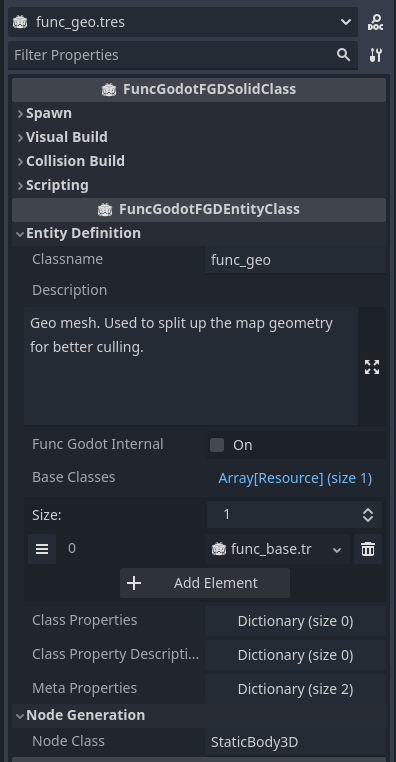

We'll examine this FuncGeo class as a demonstration of the relationships between the FuncGodotFGDBaseClass, the FuncGodotFGDSolidClass, the func_geo brush entity in the map editor, and the final generated Godot FuncGeo StaticBody3D node.

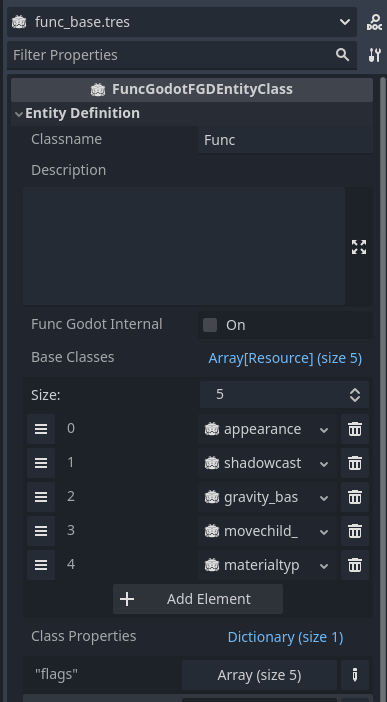

The image on the left depicts a Base Class resource that contains other base classes to accumulate Class Properties. The image on the right is a Solid Class resource containing that Base Class and defines our FuncGeo entity.

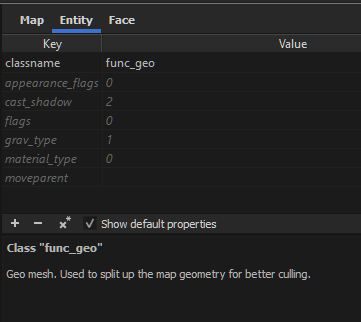

This is our FuncGeo entity's properties as they appear in TrenchBroom.

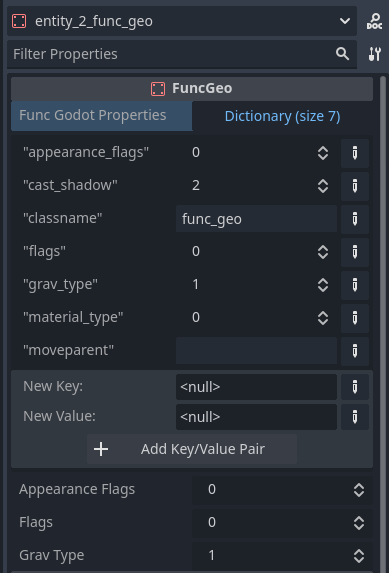

The generated FuncGeo node's properties in the inspector. See how our Func Godot Properties Dictionary matches our Class Properties from our map editor.

With FuncGodot, your entity does not necessarily need a tool script. And even if you provide it a tool script, it does not need a func_godot_properties dictionary. FuncGodot will still generate and instantiate these entities without providing any properties. However, to take full advantage of FuncGodot's power it is highly recommended that you provide your nodes with both.

See the chapters on FuncGodotFGDEntityClass resources and Entity Key Value Pairs for more information.

Default Entities

All default FuncGodot entities, except for Phong, are FuncGodotFGDSolidClass entities. All of the SolidClass entities are very similar, mostly differing in occlusion and collision.

• Phong : A FuncGodotFGDBaseClass that provides _phong and _phong_angle properties to most of the entities below. See the Wikipedia article on Phong Shading for quick primer.


NOTE: Some map editors are strict about entity definition order! To stay safe, make sure that any entity classes that inherit from a base class come after that base class. This includes other base classes! Otherwise you may run into issues where properties are not properly inherited.

• worldspawn : A geometry class that mimics the Worldspawn entity found in Quake and Half-Life. In the FuncGodot implementation, Worldspawn generates a single StaticBody3D with a child MeshInstance3D and multiple convex CollisionShape3D children. It also generates an OccluderInstance3D with an ArrayOccluder3D.
  Under normal circumstances, there can only ever be one Worldspawn entity in a map file. While there technically are ways to create multiple Worldspawn entities this manual will not explore that possibility.


• func_geo : Identical to Worldspawn, with the exception being that you can (and should) create multiple func_geos. See Why Not Worldspawn? for more information.


• func_detail : Almost identical to func_geo, with the exception that they do not generate OccluderInstance3D children.


• func_illusionary : Geometry that has no collision. It generates a Node3D, a MeshInstance3D child, and an OccluderInstance3D child.


• func_detail_illusionary : Identical to func_illusionary, except that it does not generate an OccluderInstance3D child.

Automatic PBR Generation

You may have noticed that we skipped over a few settings before, all of them with the suffic "Map Pattern". FuncGodot has the ability to automatically generate PBR materials on build. Each of the "Map Pattern" properties tell FuncGodot's Texture Loader how to find each PBR map for our texture.

What's with all the %s everywhere?

It's a placeholder token that gets replaced during texture loading. Each pattern requires two %s tokens. The first token is for the texture's name as it appears in the map file. The second token is for the file extension; this is replaced as the Texture Loader cycles through the Map Settings' Texture File Extensions searching for your texture. So if Texture Loader is looking for the normal map of a texture with the name "rock" and our Map Settings' Normal Map Pattern is "%s_normal.%s" and it is currently checking for the "png" Texture File Extension, then it will be looking to see if the texture resource "rock_normal.png" exists, and if so it will be applied to the Map Settings' Default Material if it is a StandardMaterial3D.

Clip and Skip Textures

Mapping for Quake Godot

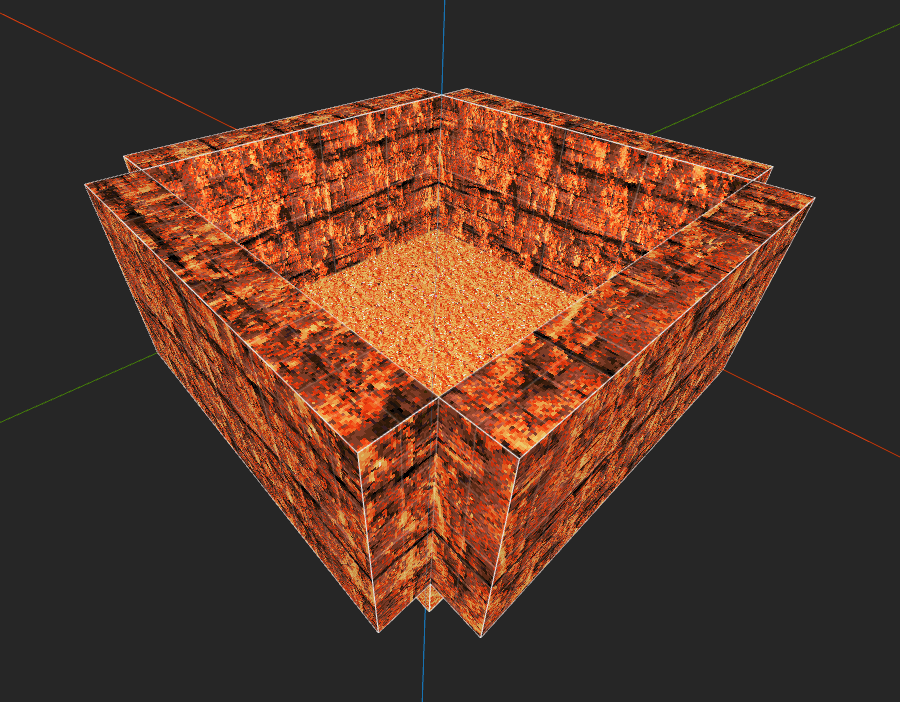

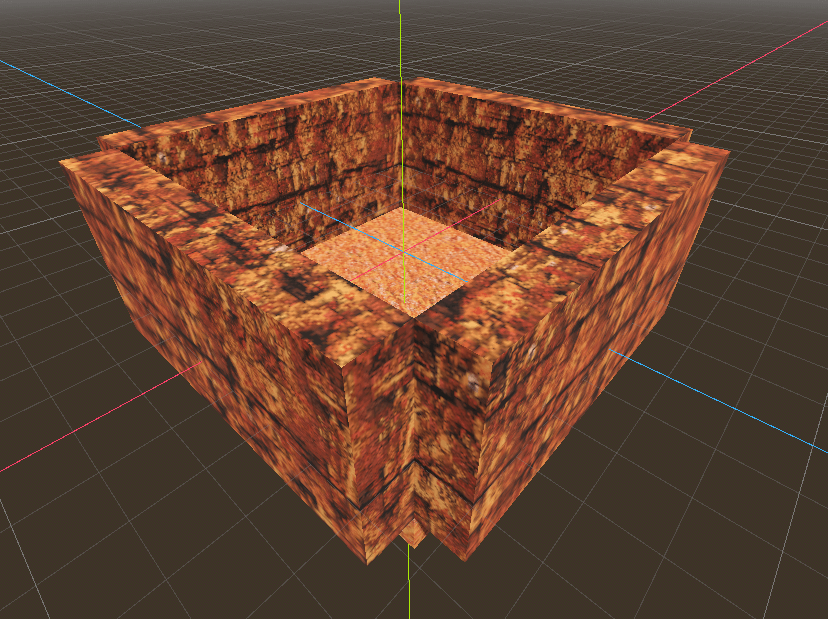

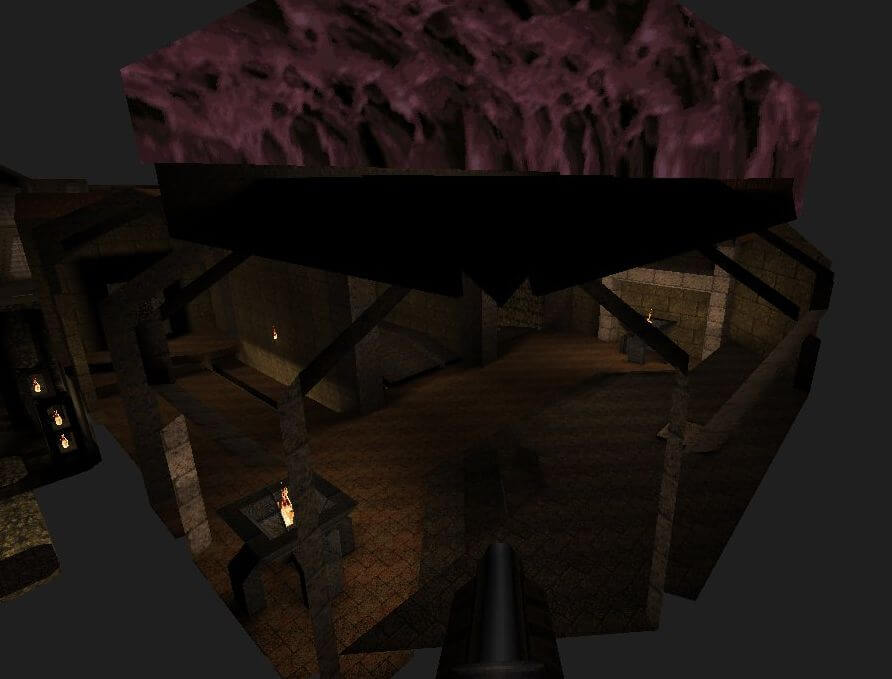

We started off this manual with the point that FuncGodot is not a BSP compiler. If we map like we do in traditional Quake mapping...

... we don't get the same result.

Instead we need to change our approach.

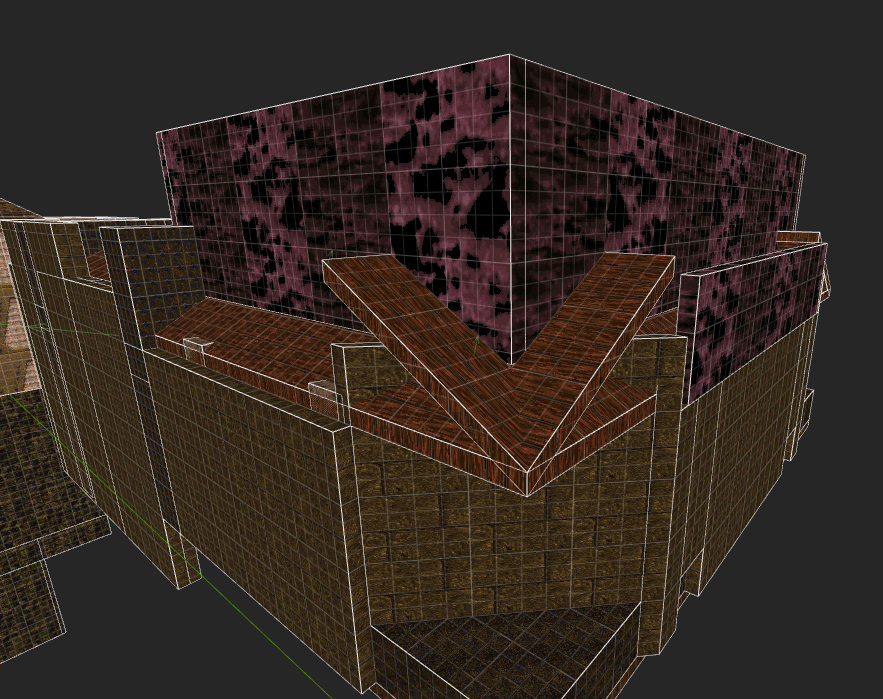

For those not familiar with traditional Quake mapping, the finished MAP gets compiled into a BSP file to be read by the engine. The compiling process calculates visibility between all of the rooms of your map and removes all faces that won't be viewed due to being outside the map. That means maps must be sealed completely, but you're also allowed to be lazy with brush texturing since if a face is "outside" the map it will get culled.

With Godot we need to think of these brushes as what they'll become in-engine: composited MeshInstance3Ds and CollisionShape3Ds. If we want to achieve the culled result on the left, we'll need to change the way we do things on the right.

Skip It

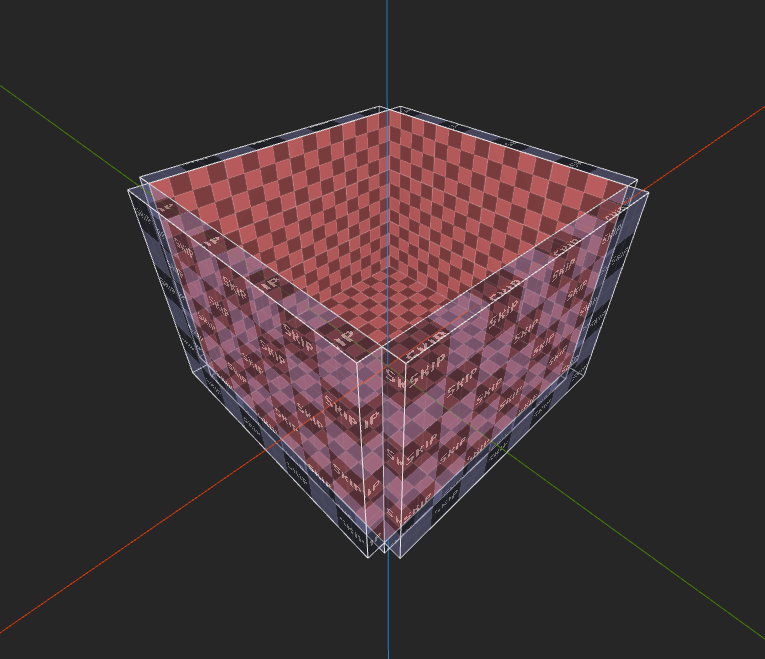

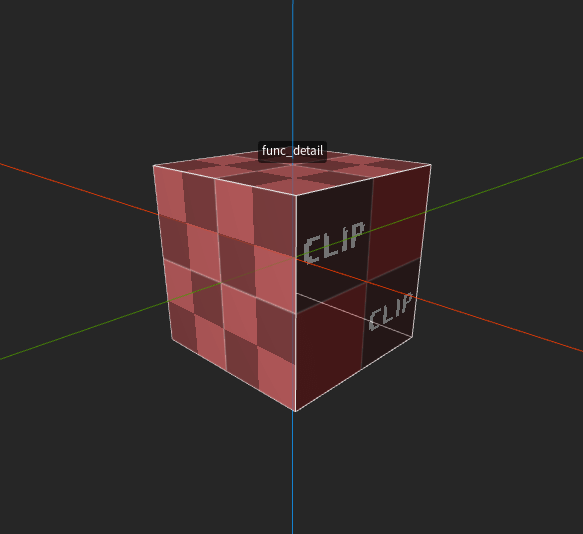

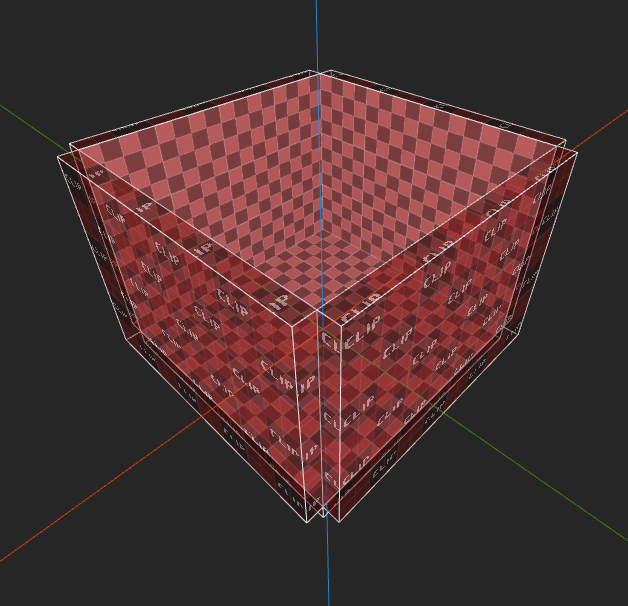

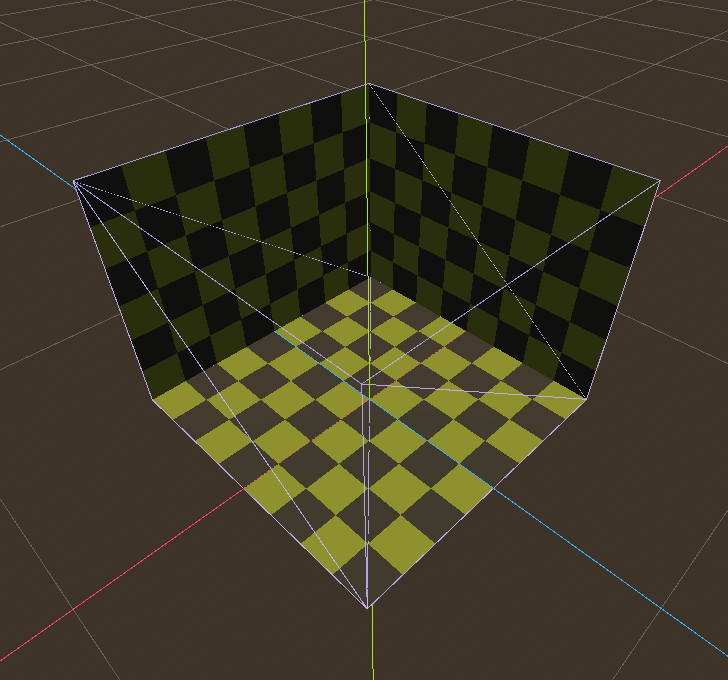

The Clip and Skip textures are arguably our most important textures when mapping for Godot. You can assign any texture's name to the Clip and Skip properties of the FuncGodotMapSettings resource. But what do they do?

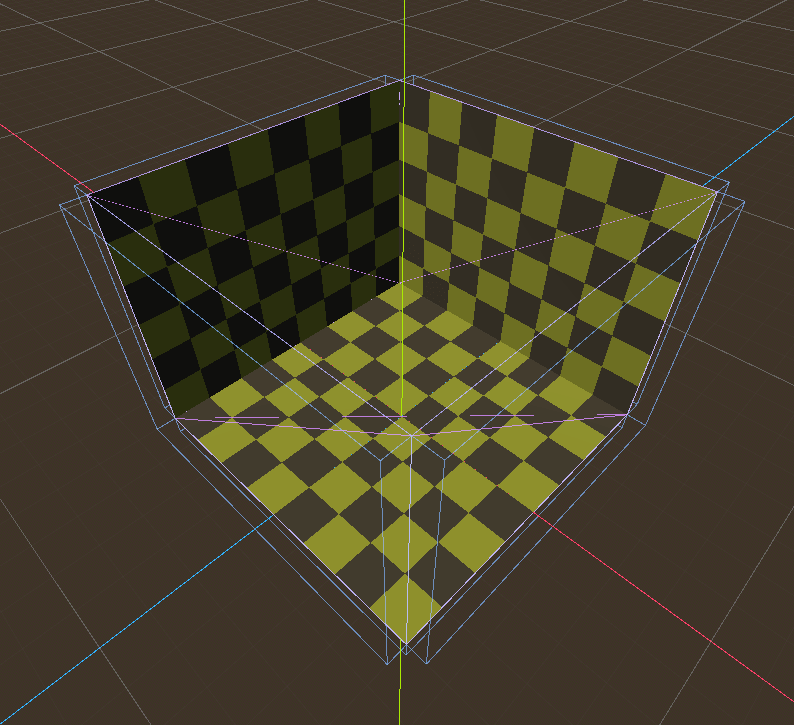

The Clip texture will remove any face textured with it from the generated MeshInstance3D. The Skip texture behaves the same way if the Solid Entity's Collision Type is set to Convex. However, if the Solid Entity's Collision Type is set to Concave, this also removes the Skip textured faces from the generated CollisionPolygonShape3D.

Just keep in mind the general rule of thumb: if you want your entities to collide with the brush, use Clip...

... and if you want them to pass through, use Skip _{(with Concave collision)}.

WAD Files

FuncGodot provides the option to use Texture WAD files for your map materials. It's generally not recommended if it can be helped, but support for loose texture images varies from map editor to map editor.

To use a WAD file with your FuncGodotMap just add your imported WAD resource to the map node's Texture Wads array.

The neat thing about how FuncGodot handles map textures is that we can technically use a completely different folder in TrenchBroom and even different image formats than the location and formats we keep them in Godot. This can be useful for advanced users, but you may want to just keep all of your textures unified.

Why Are My Textures Blurry!?

You may be encountering at least one of two issues: texture compression and / or material sampling settings.

Make sure your texture resource is set to either Lossless or VRAM uncompressed. Please refer to the Godot documentation on texture compression.

If you had created your own materials for your map, check that the material's or texture's Sampling Filter is set to Nearest Mipmap. Please refer to the Godot documentation on texture filtering.

TrenchBroom

TrenchBroom is the most commonly recommended editor for FuncGodot, with multiple resources dedicated to configuring it. The primary configuration resource is the TrenchBroomGameConfig, with the TrenchBroomTag providing additional quality of life options in the editor.

You'll need a TrenchBroom Game Config resource in order to build and export a game configuration file for TrenchBroom. Let's take a look at the resource properties:

Most of these properties should be fairly obvious in their purpose. The FGD File should be your master FGD that contains all of your other base FGDs and entities. Entity Scale only scales the display models.

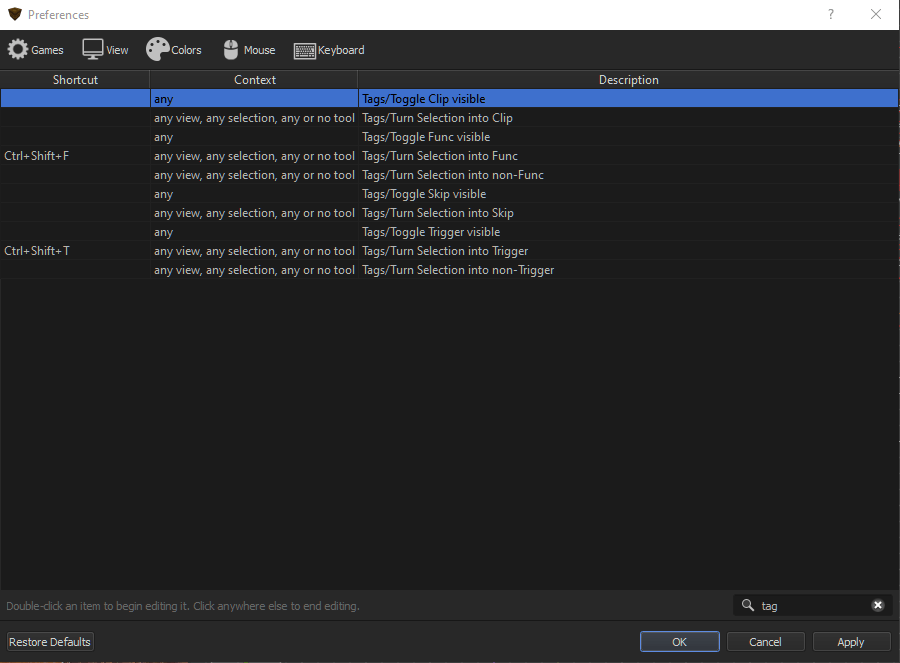

Brush Tags and Brushface Tags are strictly for TrenchBroom and have no effect in Godot. They can affect shortcut keys and have transparency effects applied to them, along with a few other features. FuncGodot comes with a few pre-made common tags. Feel free to use them in your own GameConfig resources.

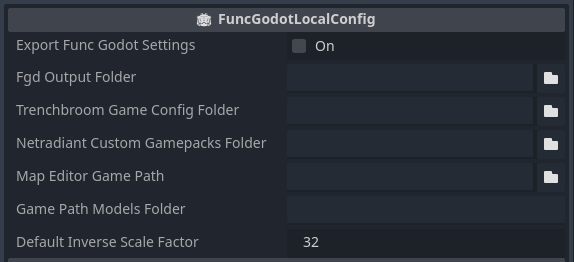

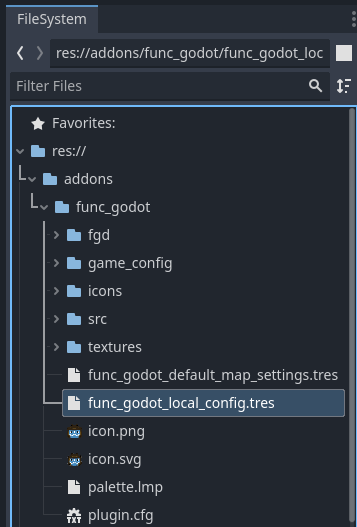

Exporting the Game Config will use the directory set in your Local Configuration's Trenchbroom Game Config Folder. Consult the TrenchBroom Manual's Game Configuration documentation for more information. Once you've exported your Game Config, open up TrenchBroom and click New Map. You should now see your project in the games list.

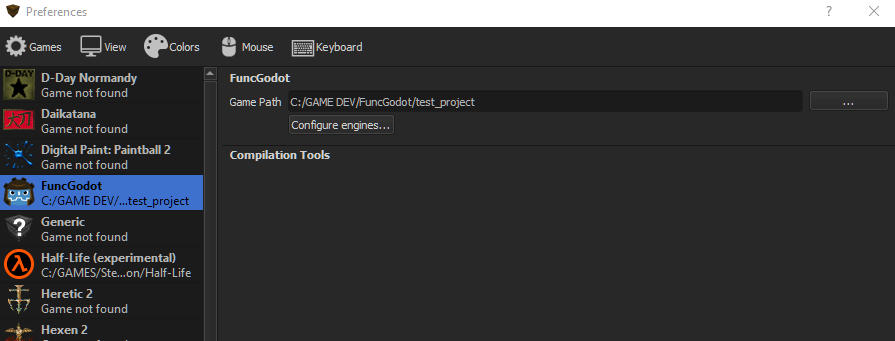

You'll need to set the game path so that TrenchBroom can find your game's textures and any models if you created some for it. Open TrenchBroom's preferences and set your game's path to the one you set to Map Editor Game Path with the Local Configuration.

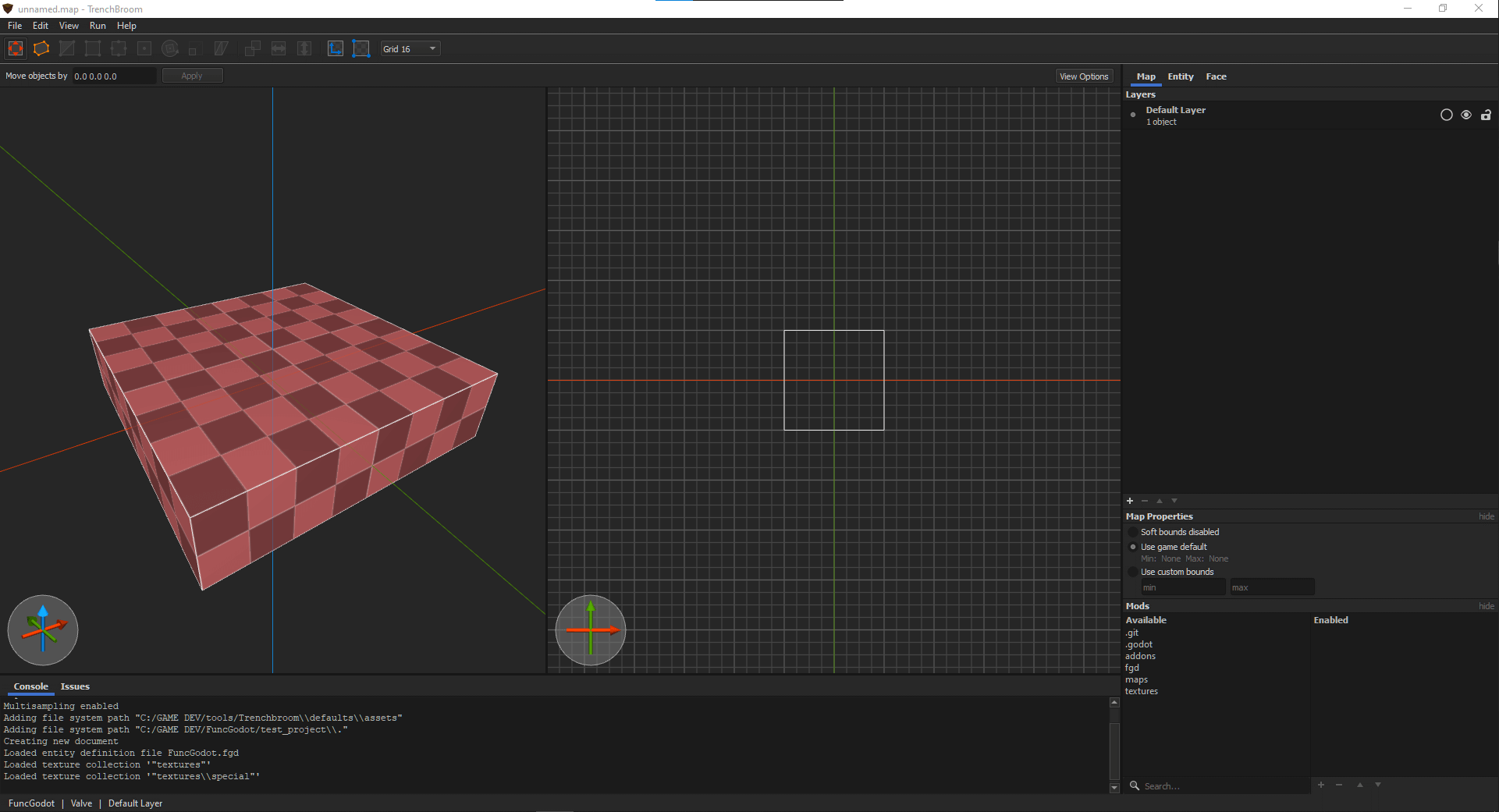

Now you should be ready to start mapping for Godot with TrenchBroom!

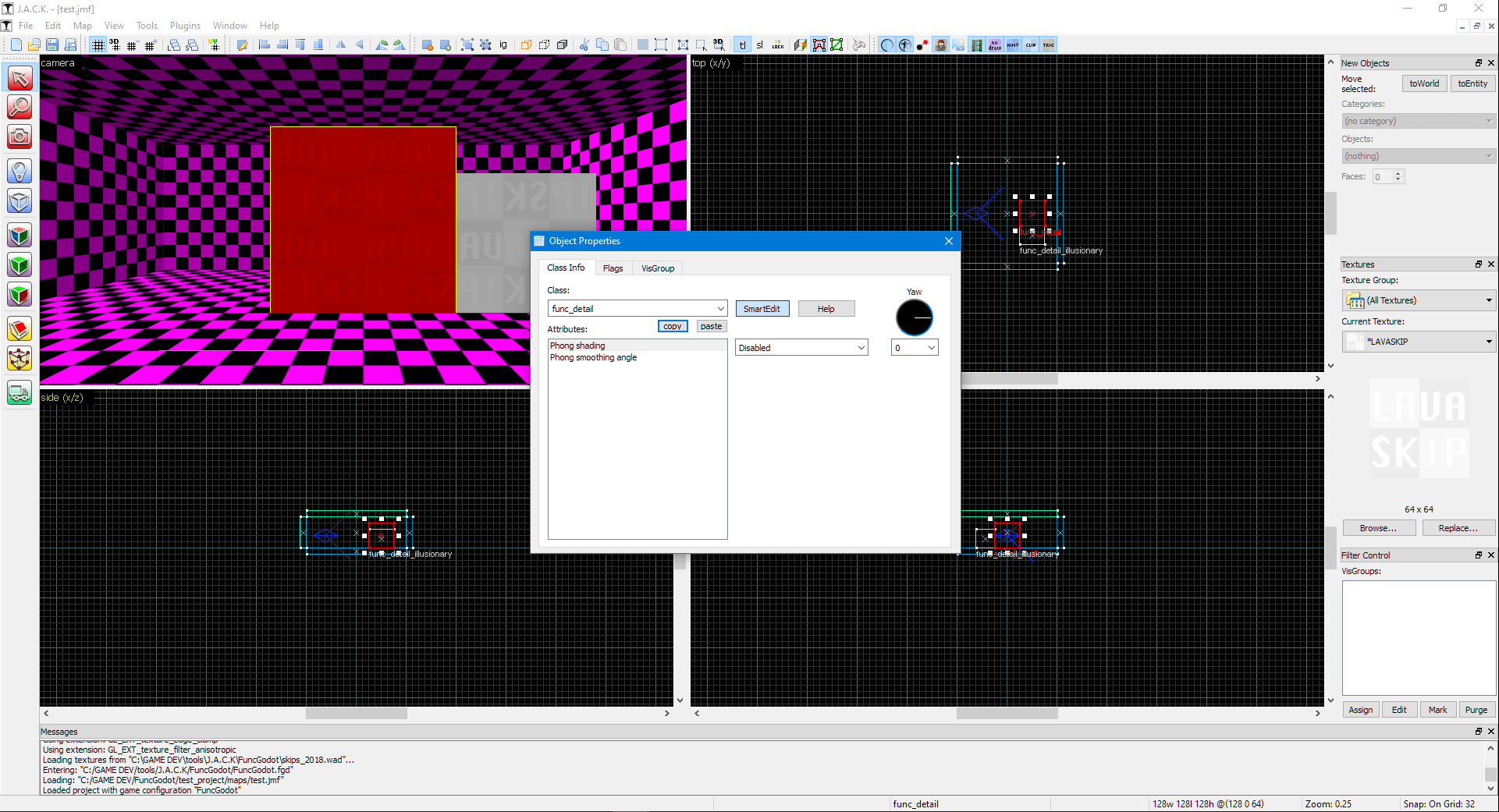

J.A.C.K.

Due to how games are configured in J.A.C.K., FuncGodot does not have any dedicated resources for it but the process is still fairly simple.

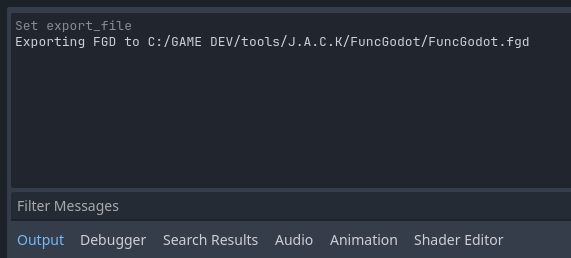

Make sure your Local Configuration's FGD Output Folder is pointing to your game's folder in J.A.C.K.'s game configuration folder. When you export an FGD file, FuncGodot will print in the Godot Output where it was saved to.

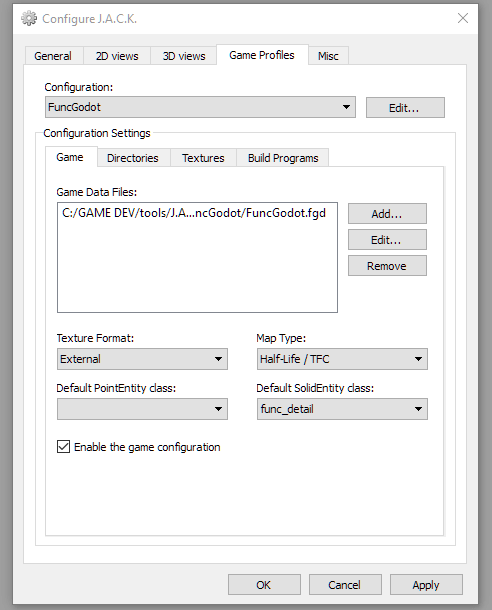

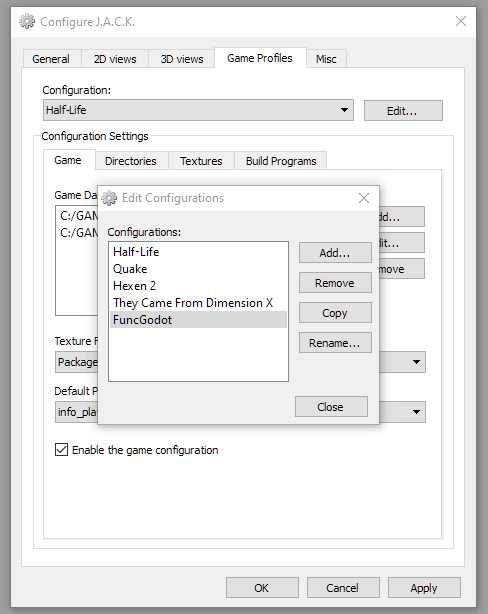

Once exported, you'll need to add your game to the Game Configurations list. Be sure to add your newly exported FGD as well.

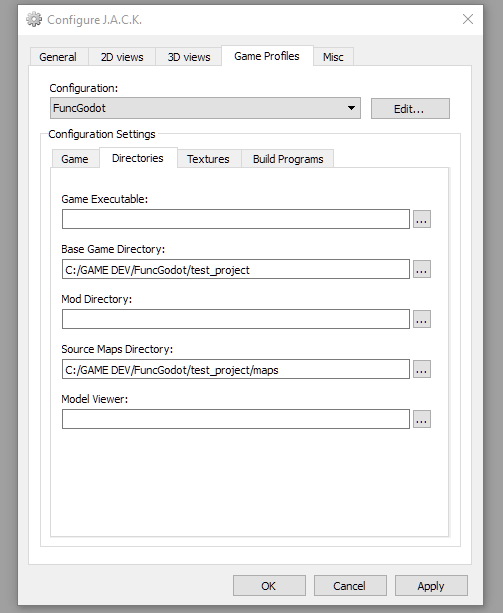

Lastly you'll want to set your Base Game and Source Maps directories.

When it comes to textures, something to keep in mind is that you do not have to use the same exact texture files from your project. You can set up a WAD file for use with J.A.C.K. but then in your Godot project have loose texture files and premade materials. As long as the relative texture paths match without the file extensions, FuncGodot will be able to select the correct textures. That said, FuncGodot does support using WAD files with your maps. Use whichever method is right for your project.

And with that, you should be all set to start mapping in J.A.C.K.!

NetRadiant Custom

NetRadiant Custom receives FuncGodot support through both local configuration and dedicated resources. The primary configuration resource is the NetRadiantCustomGamepackConfig. The NetRadiantCustomShader resource offers additional options for texture display in the editor. It is highly recommended that you familiarize yourself with NetRadiant Custom before attempting to use it with FuncGodot.

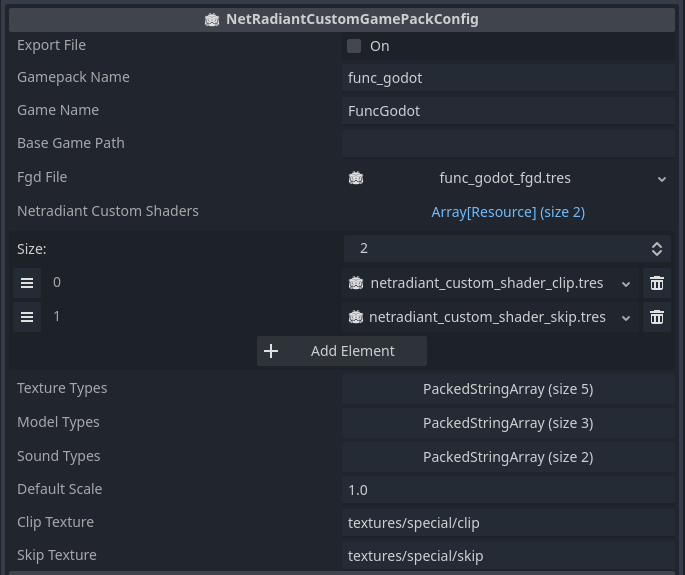

You'll need a NetRadiant Custom Gamepack Config resource in order to build and export a gamepack configuration for NetRadiant Custom. Let's take a look at the resource properties:

The Gamepack Name is the most important one to get right. This will be the name of your gamepack folder, your base game folder, and your gamepack file. The Gamepack Name MUST be all lower case with NO special characters. Bad things can happen otherwise!

The Game Name and Fgd File properties should be fairly obvious. Make sure that the FGD file you choose is the master FGD that contains all of your other base FGDs and entities.

The Base Game Path is the folder containing your maps and textures, relative to your project directory without res://. Leave this blank to use your project's root directory. If you do use a separate mapping folder within your project make sure that you follow the same formatting as the Gamepack Name: all lower case and no special characters.

The Netradiant Custom Shaders array is a resource array for... NetRadiantCustomShader resources! These will be compiled into a .shader file included with the rest of your gamepack configuration. Simply empty the array if you don't wish to use any special shaders. This only affects NetRadiant Custom and has no effect on your Godot shaders and materials.

The Texture Types, Model Types, and Sound Types arrays are the lists of compatible file types that NetRadiant Custom will attempt to look for. It's generally fine to leave this as is and is offered for the sake of more advanced users.

The Default Scale sets the default texture scale.

The Skip and Clip Texture properties set the texture paths for a number of different shader settings in the gamepack, including caulk> and nodraw.

Exporting the Gamepack Config will use the directory set in your Local Configuration's NetRadiant Custom Gamepacks Folder. After you've built the gamepack, open up NetRadiant Custom.

Once open, you'll want to go to Edit > Preferences > Global > Game. If you did everything correctly so far you should find your game in the list. Select it and then select Okay. NetRadiant Custom will need to restart.

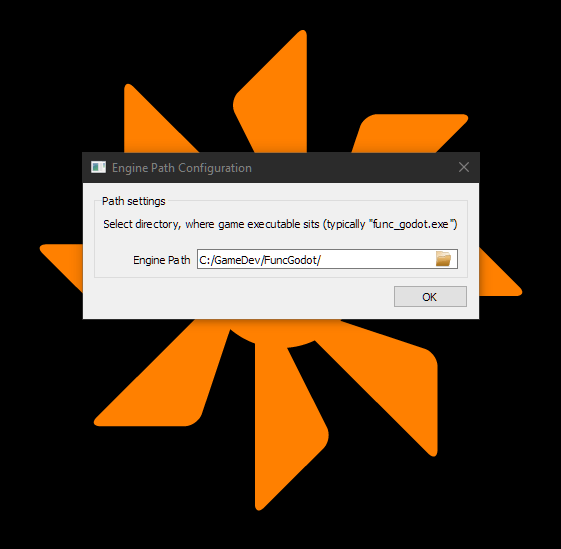

You'll be prompted to find your game's engine path. Use your Godot project's root folder.

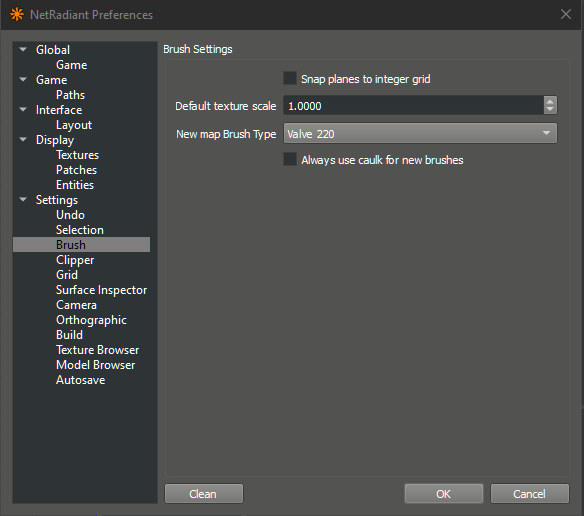

Lastly, you'll want to go to Edit > Preferences > Settings > Brush, then change New map Brush Type to Valve 220.

Now you should be ready to start mapping for Godot with NetRadiant Custom!

Inverse Scale Factor

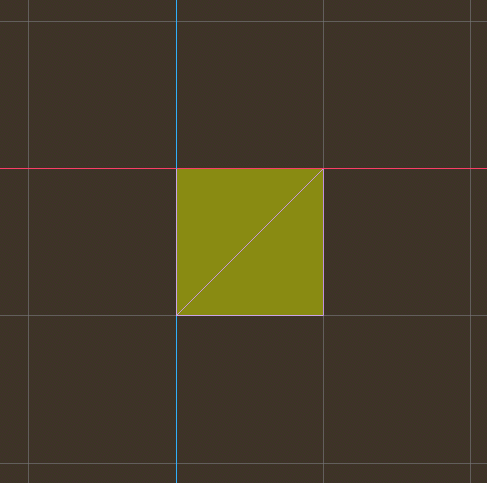

One of the most impactful properties is the Inverse Scale Factor. It tells FuncGodot how big or small your map should be built. As it's an inverse scale, this means larger numbers will build smaller maps. How do you decide on the right inverse scale for your game though? To figure it out, it helps to know what you're scaling against.

In Godot, units are measured by meters. By default the modeling program Blender is as well. Quake maps however are all measured in Quake Units. Incidentally, a pixel in a map texture rendered at 100% scale on a brush face is equal to 1 Quake Unit.

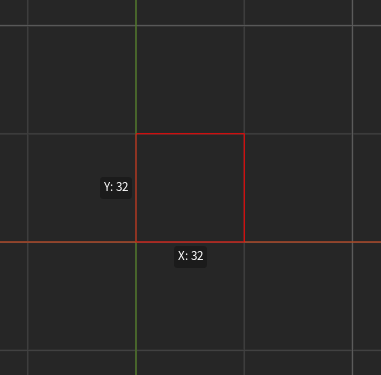

How many pixels does a meter equal out to? 137? 22? The truth is that it's arbitrary; it really depends on what you want the average resolution of your game to be at. The FuncGodot Map Settings default to 32 because this puts a 1.5-2 meter tall player at a similar texture resolution to Quake. Feel free to experiment with this value to find the right scale for your game.

NOTE: Accounting for the Inverse Scale Factor in your class scripts will better allow you to design your entities within the map editor, i.e: using Quake Units to determine a moving platforms travel distance in your map editor and on import letting your node script translate that value into Godot Units using your Inverse Scale Factor.

Use Trenchbroom Groups Hierarchy

TrenchBroom has some unique features in the form of Layers and Groups (not to be confused with func_group, but also they're func_groups; they're weird). They add a convenient level of organization to the map making process.

In some cases mappers may want to design their maps in such a way as too create a hierarchy for their nodes using TrenchBroom Layers and Groups. FuncGodot offers this option using the Use Trenchbroom Groups Hierarchy property.

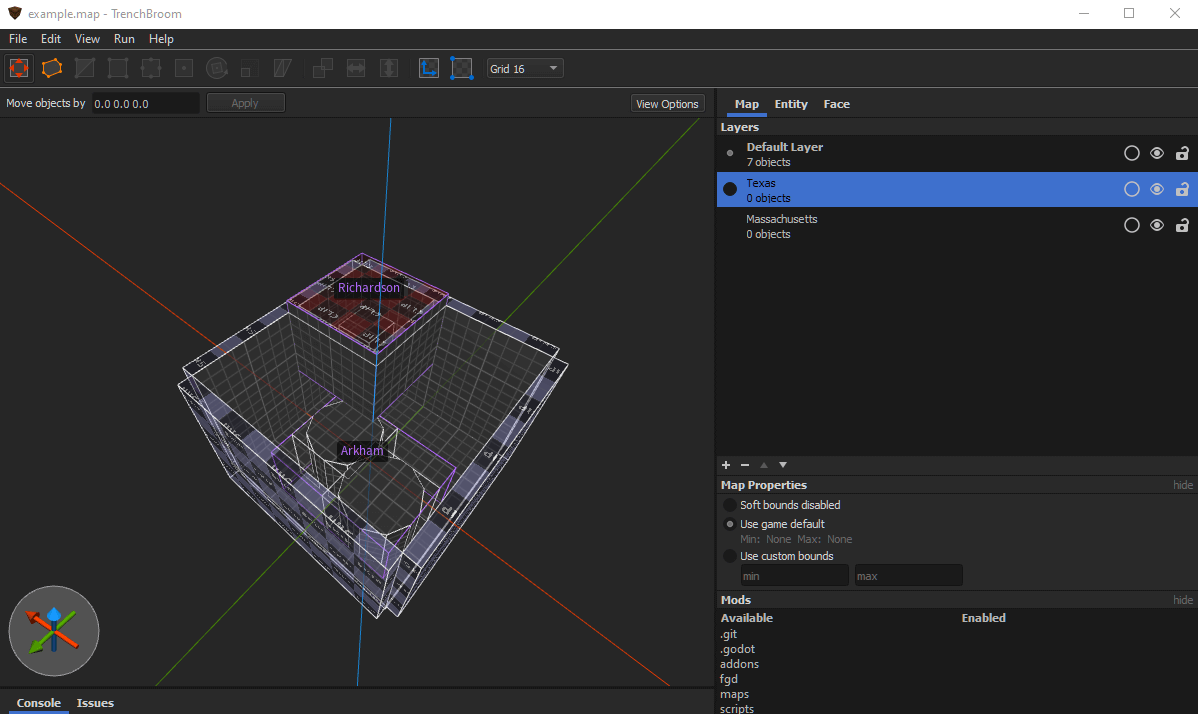

Let's say you created two layers and two groups of brush entities, both groups on separate layers.

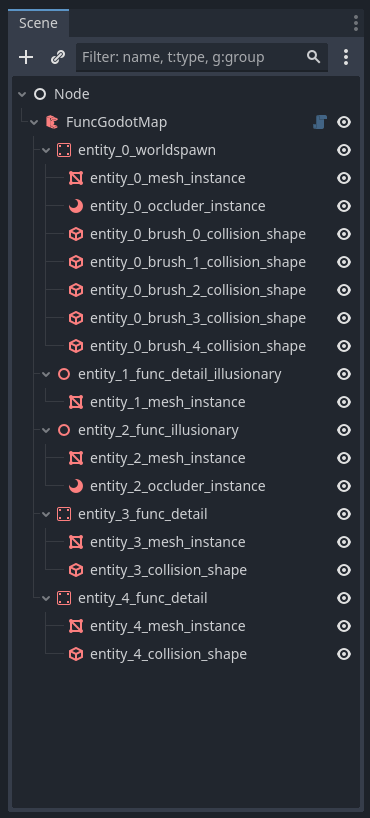

If Use Trenchbroom Groups Hierarchy is disabled, your built FuncGodotMap scene structure will look something like this:

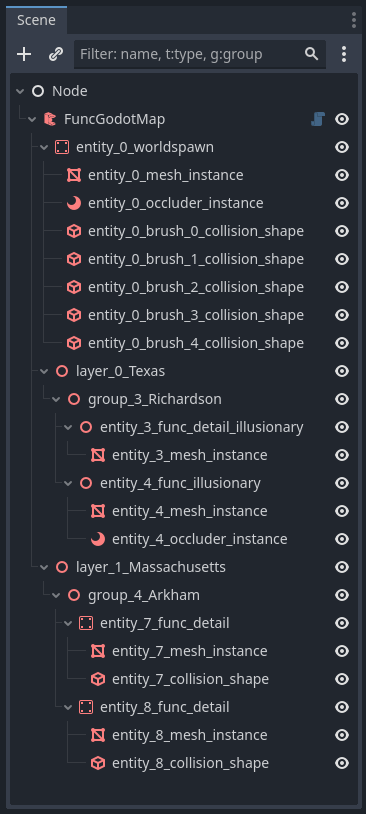

However, if you build your FuncGodotMap with Use Trenchbroom Groups Hierarchy enabled, you'll get this instead:

Building

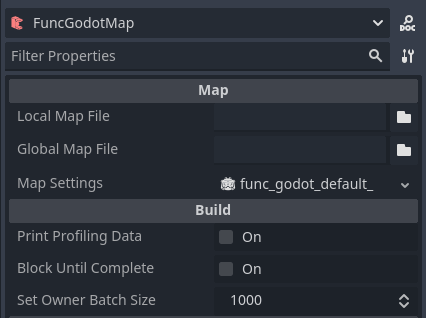

You have your map file selected. You have your map settings ready. You've decided on an inverse scale factor and, if you're using TrenchBroom, you've decided whether you want a flat or multi-level scene tree hierarchy. It's time to build the map. With your FuncGodotMap node selected the toolbar at the top of the editor should change.

The Build button will build the map scene and apply all the appropriate ownership and settings to the map scene.

Unwrap UV2 can be used after the build process; it cycles through every Solid Entity with the Use In Baked Light property enabled in their definition and unwraps the UV2 of their MeshInstance3D children. If you're using baked lightmaps you'll need to press this button after every build but before every lightmap bake.

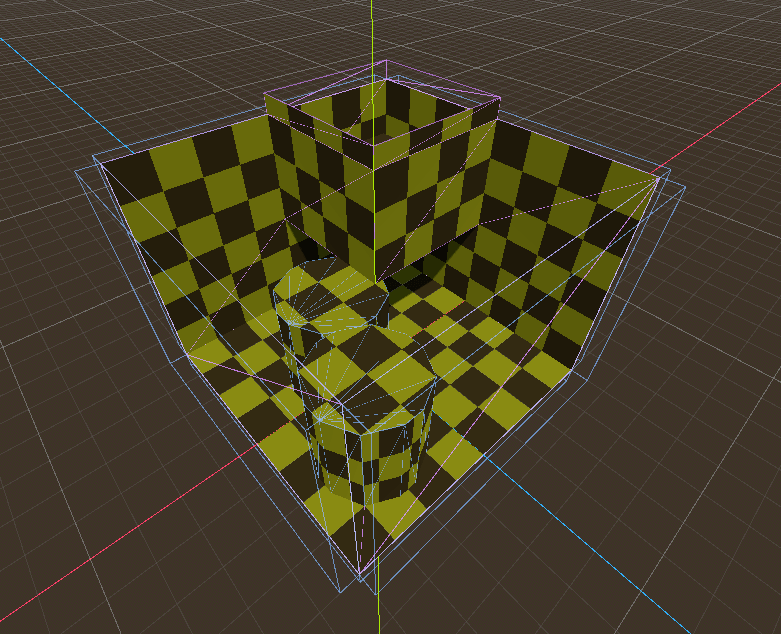

Go ahead and perform a Build and marvel in your master level craftsmanship.

Congratulations! You've built your first FuncGodot Map!

FuncGodotFGDFile

Resource file used to express a set of FuncGodotFGDEntity definitions. Can be exported as an FGD file for use with a Quake map editor. Used in conjunction with a FuncGodotMapSettings resource to generate nodes in a FuncGodotMap node.

FuncGodotFGDEntityClass

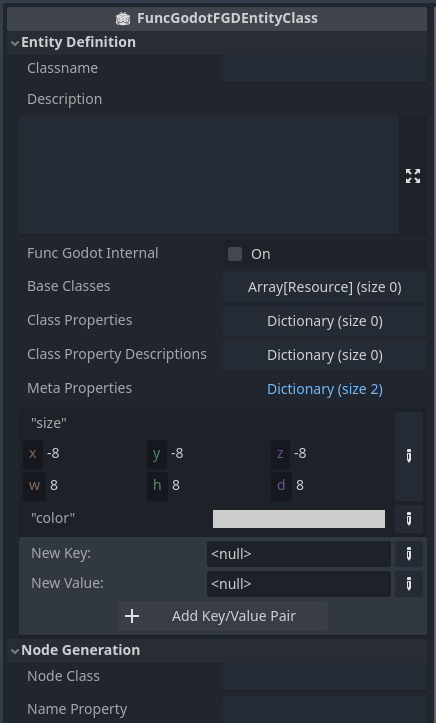

Base entity definition class. Not to be used directly, use FuncGodotFGDBaseClass, FuncGodotFGDSolidClass, or FuncGodotFGDPointClass instead.

FuncGodotFGDBaseClass

Special inheritance class for Solid Class and Point Class entity definitions. Useful for adding shared or common properties and descriptions. Does not have any unique properties on its own but is defined separately to facilitate FGD building and lookup.

FuncGodotFGDSolidClass

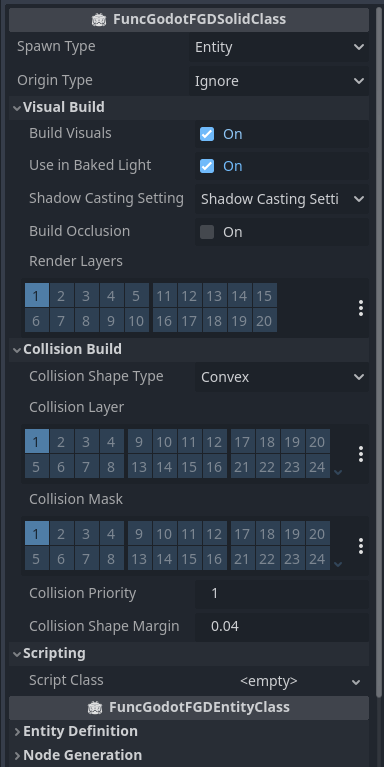

FGD SolidClass entity definition, used to define brush entities. A MeshInstance3D will be generated by FuncGodotMap according to this definition's Visual Build settings. If FuncGodotFGDSolidClass Node Class inherits CollisionObject3D then one or more CollisionShape3D nodes will be generated according to Collision Build settings.

FuncGodotFGDPointClass

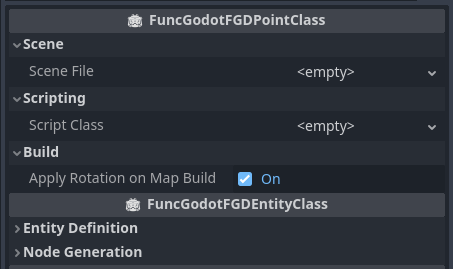

FGD Point Class entity definition, used to define point entities. PointClass entities can use either the Node Class or the Scene File property to tell a FuncGodotMap what to generate on map build.

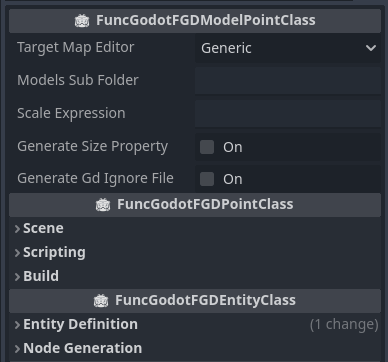

FuncGodotFGDModelPointClass

A special type of FuncGodotFGDPointClass entity that can automatically generate a special simplified, scaled, and reoriented GLB model file for the map editor display. Not supported by editors without GLB / GLTF support.

Applying Key Values

It's pretty easy to apply entity key value pairs to nodes generated by FuncGodot. You have one property and two methods that you can use: the Dictionary func_godot_properties, the method _func_godot_apply_properties(entity_properties: Dictionary), and the deferred method _func_godot_build_complete().

After the entity is built, FuncGodot will check if the entity contains a func_godot_properties Dictionary, and if it exists it will apply the translated key value pairs as a Dictionary to this variable. In order for the application to persist at Runtime or after closing your scene, you'll need to make sure the variable is an @export variable.

Use _func_godot_apply_properties to apply your key value pairs to your node, as they are passed through the _func_godot_properties argument in the function.

_func_godot_build_complete is a deferred call that happens after every entity has called _func_godot_apply_properties, making it safe to reference any nodes generated during _func_godot_apply_properties.

You are allowed to limit yourself to only the application methods you're interested in. Mix and match these options as you see fit for your entities.

Property Types

FuncGodot supports many of the Godot Variant types. Consult the key values section of the FGD page on the Valve Developer Wiki for more information on FGD value types.

Choices

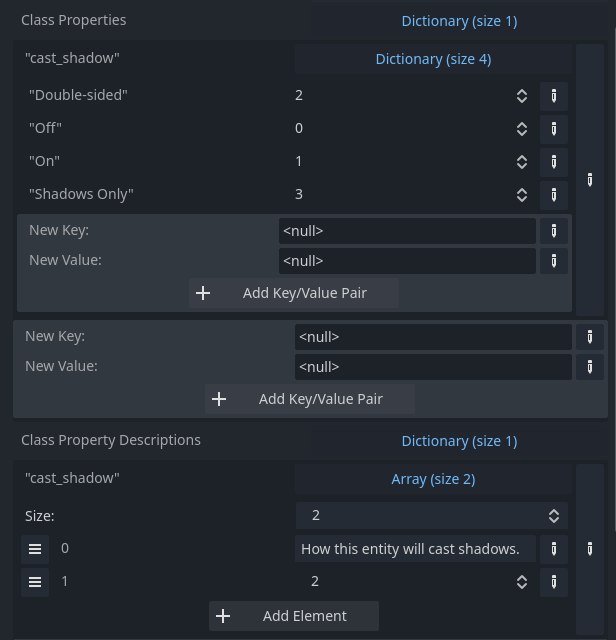

The choices key value type allows you to open a dropdown menu of predefined options in your map editor. They are defined in Godot by choosing a value type of dictionary, with each key being the option text and each value being the property value. Keys are always Strings, but values can be either Int or String.

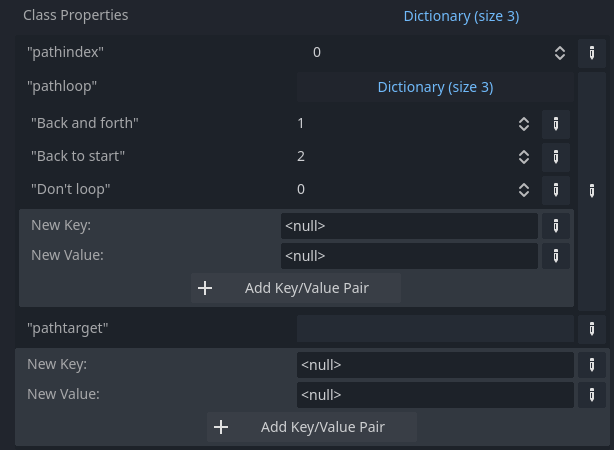

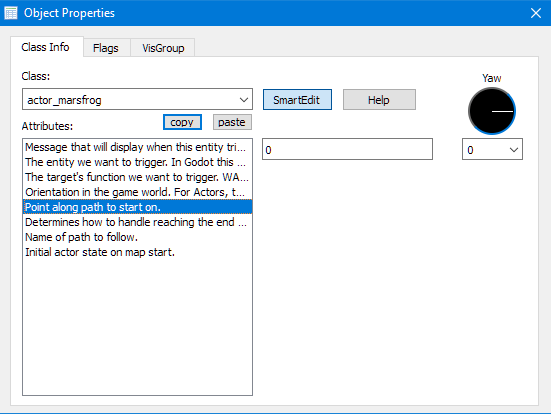

Normally the default value is set in Class Properties, but for Choices we can't do this (not without a fair amount of trouble). Instead we use Class Property Descriptions to set a default value. We do this by creating an Array with 2 elements: the first element is a String serving as the description; the second element is the default choice and should be either an Int or String matching one of the option values defined in Class Properties.

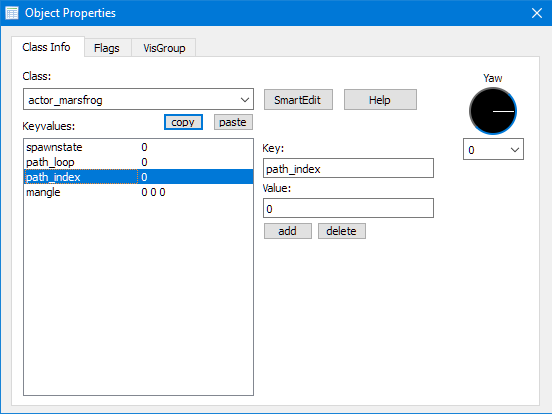

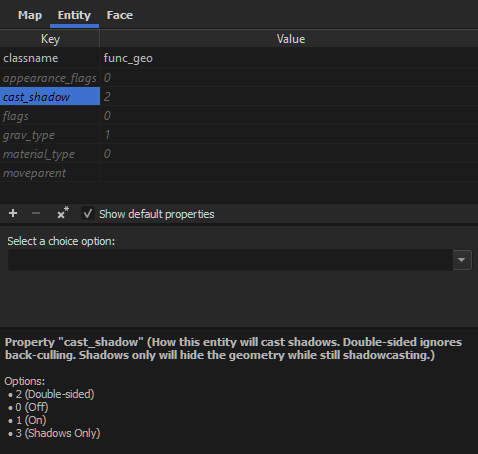

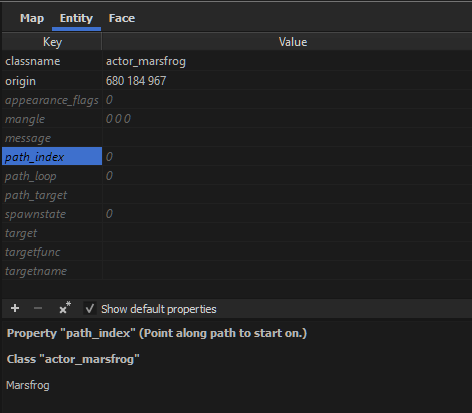

Once written to the FGD you should get a something like this in your map editor:

NOTE: While Bool types always generate a choices key value type, you don't need to set them up any differently than any other property. FuncGodot will automatically format Bool types for you on FGD export.

Bit Flags

Bit flags are the most complex key value type to set up, but offer a lot in simplifying complex comparisons and systems in your game scripts.

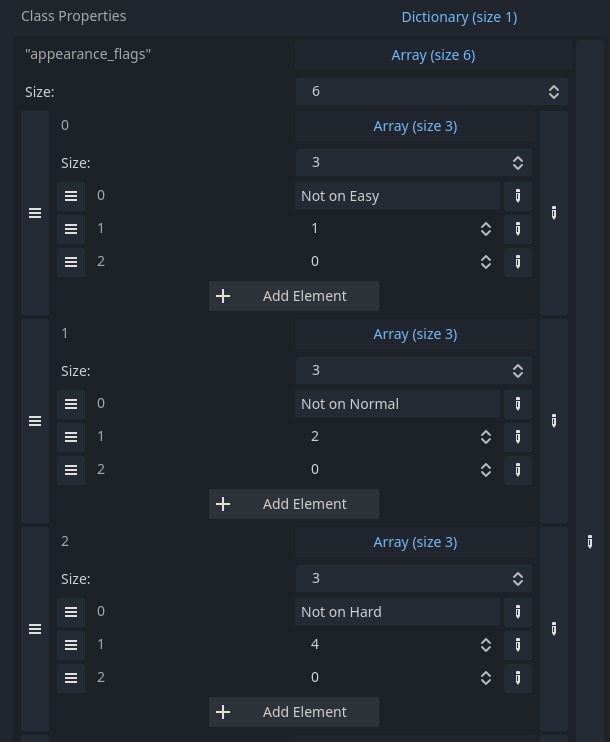

To set up a bit flags property, choose Array as the value's Variant type. Each element of the Array will be an Array as well, representing a single Flag. Each Flag Array is composed of 3 elements: a String serving as the Flag Description, an Int declaring the Flag's Bit Value, and an Int representing the Flag's default state.

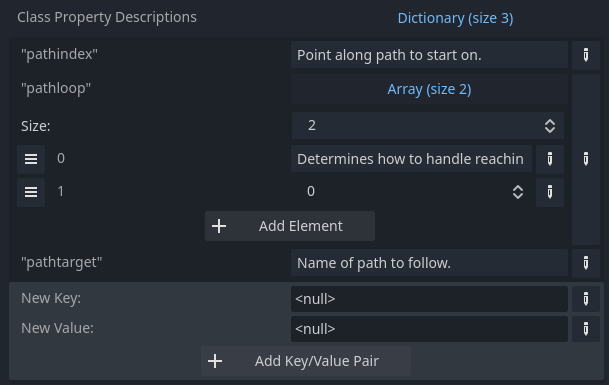

Bit Flag properties do not utilize descriptions so there is no need to add one to the entity's Class Property Descriptions dictionary.

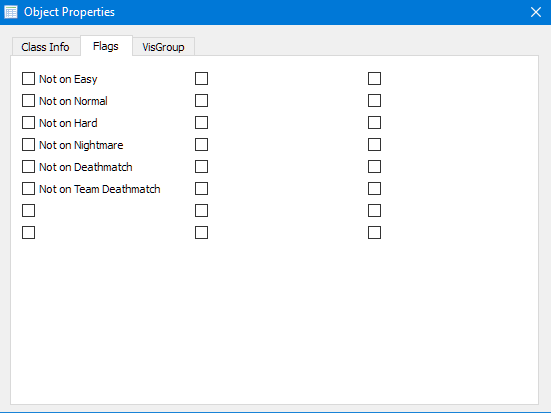

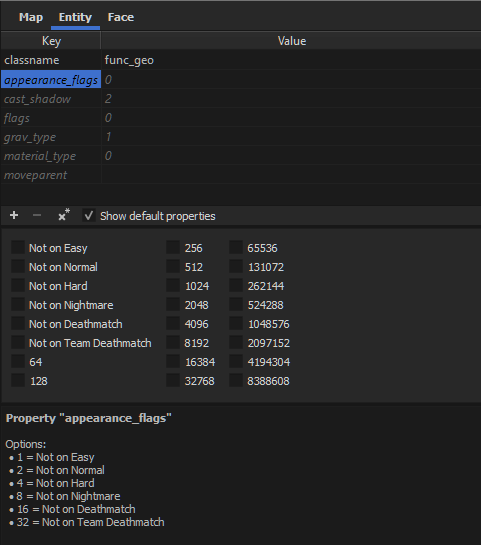

Once exported, you should get something like this:

>

_{Left, Trenchbroom; Right, J.A.C.K.; Not shown: NetRadiant Custom because I'm lazy, but it's pretty similar to J.A.C.K. in this regard.}

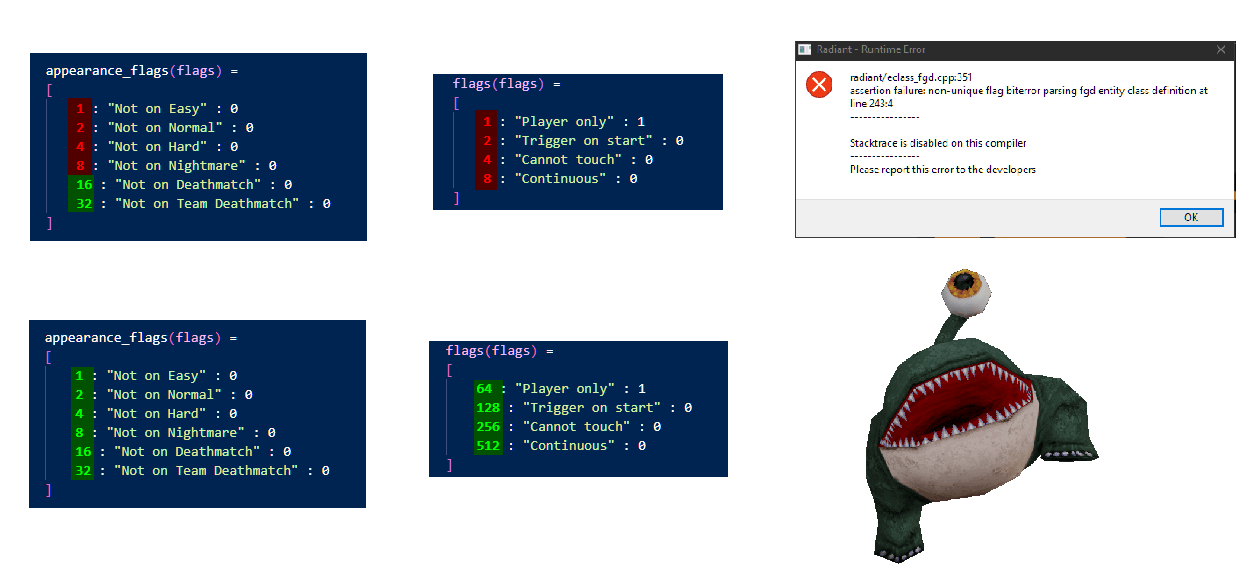

Even though Godot uses 64 bit signed integers, map editors only seem to offer support for up to 24 bit flags. This is largely an artifact of the Quake engine, specifically its Quake C programming language. QuakeC doesn't have an integer type and instead used a 32 bit floating point number. The result was that only 24 bits remained to be used in bitwise operations. The Half-Life engine inherited this limitation, and subsequent Quake and Valve map editors designed their bit flag menus with this limitation in mind.

In TrenchBroom this isn't too much of a problem as you can have multiple bit flag key value pairs. Unfortunately other map editors are designed to only support one group of flags that they assume to be spawnflags, no matter what they're called in the FGD. J.A.C.K. will just overwrite spawnflags. NetRadiant Custom will throw errors if it detects flag values with matching bits and be unable to open. All key value types of flags will be compiled into the entity's Flags property and saved in the map file with the key "spawnflags".

If you're using another map editor other than TrenchBroom, you can still use multiple flags key value pairs or inherit them across multiple Base Classes. Just make sure each flags property applied to an entity has a unique bit value and expect FuncGodot to build it as a compiled spawnflags bitmask.

TrenchBroomGameConfig

Defines a game in TrenchBroom to express a set of entity definitions and editor behaviors.

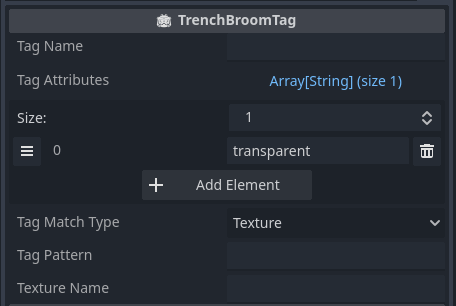

TrenchBroomTag

Pattern matching tags to enable a number of features in TrenchBroom, including display appearance, menu filtering options, and keyboard shortcuts. This resource gets added to the TrenchBroomGameConfig resource. It does not affect appearance or functionality in Godot. See the TrenchBroom Documentation on Tags under the Game Configuration section for more information.

NetRadiantCustomGamepackConfig

Builds a gamepack for NetRadiant Custom.

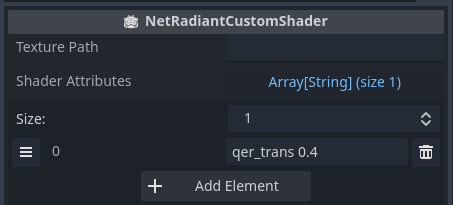

NetRadiantCustomShader

Resource that gets built into a shader file that applies a special effect to a specified texture in NetRadiant Custom.

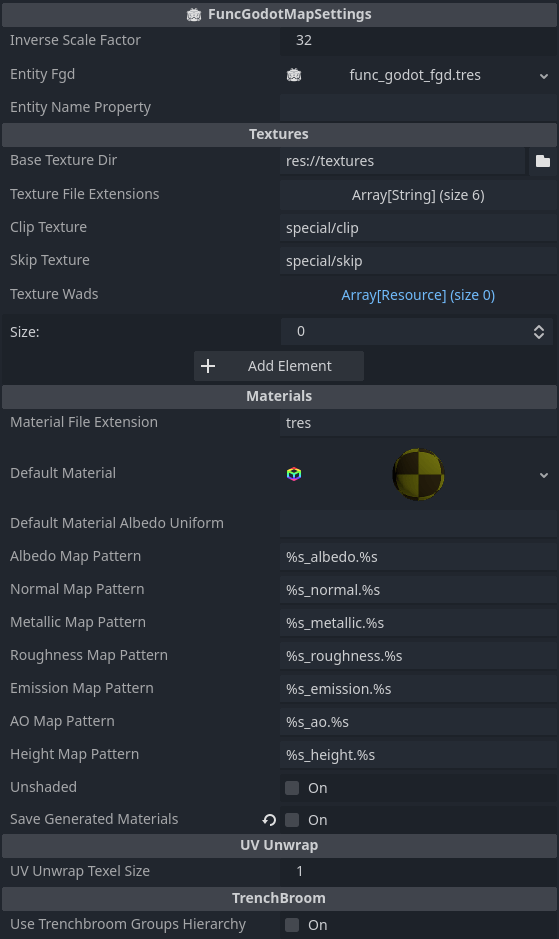

FuncGodotMapSettings

Reusable map settings configuration for FuncGodotMap nodes.

First things first... What IS Worldspawn?

As mentioned before, FuncGodot comes with a set of example Entity Definitions, including one for the worldspawn class that comes built-in to every Quake map file. But what is worldspawn?

Every Quake map file contains a list of entities containing a set of key value pairs. Some optionally include brush definitions. In Quake, the entity's classname is also the spawn function that is called upon map start. The very first entity that needs to load is the world, so entity 0 is always worldspawn. There can also only ever be one Worldspawn in a Quake map (with one weird exception I'll mention later).

Simply put, Worldspawn is just another entity. It's not even a Solid Entity by default. It needs to be defined in your FGD just like any other entity, too, or else it will revert to a simple Node3D with a mesh and no collision. The only special behavior Worldspawn has is that its position will always be the FuncGodotMap's position, unlike other Solid Entities.

The example Worldspawn entity is defined as a Solid Class StaticBody3D with convex collision, and the general understanding is that it's a built in mechanic of FuncGodot. Some of you need to have your stage geometry cut up for occlusion or per-collider purposes. In Tim's game They Came From Dimension X, worldspawn was changed into a WorldEnvironment that instantiates a LightmapGI while also handling default music playback and other map-wide settings. You might think of a completely different use case for it.

NOTE: Setting Worldspawn as a Point Class may have undefined side effects due to being able to place a second Worldspawn in your map. It is recommended that any Worldspawn definition be a Solid Class.

So why not Worldspawn?

Occlusion Culling

Performance on larger or heavily populated maps mostly. Godot culls objects by the VisualInstance; in the case of our maps, this means mesh by mesh. In order to get better performance we'll need to split our map up into smaller chunks.

Meshes are generated on a per-entity basis: every brush in a Solid Entity is merged into a single mesh. Since Worldspawn is an entity, any brush that is a part of Worldspawn gets merged into the same mesh. If we want to split up our mesh, we need to split our Worldspawn into separate entities.

Remember: FuncGodot is not a BSP compiler. This means mapping for Godot like you're mapping for Quake is counterproductive. Instead, make sure you give some thought to how you'll split up your geometry entities, and how the brush vertices meet with each other. In exchange for full automation, FuncGodot instead gives you full control.

Surface "Materials"

A common question a lot of Godot devs have is how do I get the texture of the surface my character is stepping on or shooting? and the answer is... you don't! Well, the short answer anyway. Since Godot's CollisionObjects are completely separate from the MeshInstance3Ds, there's no real good performant way to actually do it surface by surface. Any possible solutions that involve getting the stage mesh's texture on a particular face are just not worth it. But why work against the engine when you can work with it?

If we can control how our stage geometry is split up, we can also provide that stage geometry with key value properties, including one that supplies a Material Type that can easily be passed to any character stepping on or shooting it. This is something that can't be done with a singular Worldspawn entity.

How Do I Live Without Worldspawn?

You'll want to create a Solid Class entity that matches the Worldspawn entity definition. It's recommended that you change the Spawn Type to ENTITY though. Feel free to also add any Class Properties you feel would benefit your game's design. The world geometry solid class entity used in Tim's games is typically called func_geo. He never shuts up about it.

A World Alongside Worldspawn

It would also help to create your own new worldspawn entity definition that doesn't build visuals or collision, so that you can more easily tell if that stage geometry was given its own func_geo or was accidentally left as worldspawn. Keep in mind that a Quake map file's first entity will always be worldspawn, and that all map editors will only allow you to have one that they make automatically.

With that in mind... why not a WorldEnvironment? Let's take a look at an example of how you might repurpose a Worldspawn for one.

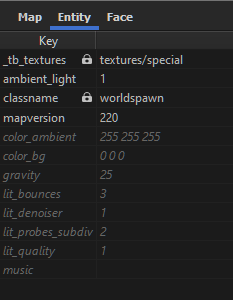

In TrenchBroom we can have our `worldspawn` settings set up like this in our FGD. We're assuming you know how this is done by now, but if not please go back and reread the section on Entities near the beginning of the manual.

Then in Godot, when the map is built and the Worldspawn's func_godot_properties dictionary is set, it runs the _func_godot_apply_properties(props) method.

@tool
extends WorldEnvironment
class_name Worldspawn

const LIGHT_LAYER_MASK: int = 31

@export var func_godot_properties: Dictionary = {}

func _func_godot_apply_properties(props: Dictionary) -> void:
    # WORLD ENVIRONMENT
    var env: Environment = Environment.new()
    # Base settings
    env.set_fog_enabled(false);
    env.set_tonemapper(Environment.TONE_MAPPER_FILMIC)
    env.set_glow_enabled(false)
    # Background
    env.set_background(Environment.BG_COLOR);
    if props.has("color_bg"):
        env.set_bg_color(props["color_bg"]);
    else:
        env.set_bg_color(Color());
    # Ambient light
    env.set_ambient_source(Environment.AMBIENT_SOURCE_COLOR);
    if props.has("color_ambient"):
        env.set_ambient_light_color(props["color_ambient"]);
    else:
        env.set_ambient_light_color(Color.hex(0xFFFFFFFF));
    if props.has("ambient_light"):
        env.set_ambient_light_energy(props["ambient_light"]);
    else:
        env.set_ambient_light_energy(0.0);
    env.set_ambient_light_sky_contribution(0.0)
    # Brightness setup
    env.set_adjustment_enabled(true)
    env.set_adjustment_brightness(1.0)
    set_environment(env)

It doesn't stop there, by the way. You may have noticed a number of key value pairs in our TrenchBroom entity: lit_bounces, lit_denoiser, etc... Instead of manually creating the lightmap for each map, we can have our Worldspawn entity programmatically create and modify the LightmapGI node any time the map is built. To do this, we'll use the _func_godot_build_complete() method, automatically called as a deferred call at the end of the build process.

func _func_godot_build_complete() -> void:
    # Find existing lightmap, else build a new one
    var lit: LightmapGI
    if get_owner().has_node("lightmap"):
        lit = get_owner().get_node("lightmap")
    else:
        lit = LightmapGI.new()
        lit.set_name("lightmap")
        get_owner().add_child(lit)
        lit.set_owner(get_owner())
    lit.get_parent().call_deferred("move_child", lit, 0);
    lit.set_layer_mask(LIGHT_LAYER_MASK)
    # Bake Quality
    if func_godot_properties.has("lit_quality"):
        lit.set_bake_quality(func_godot_properties["lit_quality"] as LightmapGI.BakeQuality)
    else:
        lit.set_bake_quality(LightmapGI.BakeQuality.BAKE_QUALITY_MEDIUM);
    # Bounces
    if func_godot_properties.has("lit_bounces"):
        lit.set_bounces(func_godot_properties["lit_bounces"] as int)
    else:
        lit.set_bounces(3);
    # Lightmapper Probes Subdivision
    if func_godot_properties.has("lit_probes_subdiv"):
        lit.set_generate_probes(func_godot_properties["lit_probes_subdiv"] as LightmapGI.GenerateProbes)
    else:
        lit.set_generate_probes(LightmapGI.GenerateProbes.GENERATE_PROBES_SUBDIV_8);
    # Use Denoiser
    if func_godot_properties.has("lit_denoiser"):
        lit.set_use_denoiser(func_godot_properties["lit_denoiser"] as bool);
    else:
        lit.set_use_denoiser(true);

That's right: during the build process you can have your entities' properties affect other entities or nodes outside of the FuncGodotMap node. This is somewhat advanced Godot scripting, as you do need to understand a bit more about when objects will exist in the SceneTree, but it's an extremely powerful tool at your disposal.

Hopefully this little essay asking you to question the role of Worldspawn has gotten you thinking a bit more outside the box in regards to what you can do with FuncGodot. Be sure to join our Discord community and let us know what you did with your Worldspawn!

Godot and FuncGodot

Official FuncGodot Discord
If you've got questions on FuncGodot or Godot, we've got some extremely helpful community members who are generally happy to answer them. Be respectul and patient: we're all volunteers, doing this on our free time and out of a love for the community.

FuncGodot Repositories
The official repositories contain helpful example projects that can show you how you might design your own games to take advantage of FuncGodot.

Godot 4 Latest Stable Documentation
This may seem obvious or sarcastic, but this is probably the best source for almost all of the answers to almost all of your questions. This is your best friend. Most FuncGodot questions people have are really just Godot questions that don't involve FuncGodot at all. If you need to know how to do something in Godot, it's in this manual (literally).

RhapsodyInGeek's GitHub Repositories
Tim often shares a lot of his work on GitHub, most of it licensed under Creative Commons Zero and MIT. Not all of it can be dragged and dropped into your own projects, but hopefully you'll come away from them learning something new.

Valve Developer Community Wiki's FGD Page
This is an extremely helpful resource in learning how FGD files work, and not just for Valve games or Hammer: it covers how FGD files are used by other editors too. If you want to take advantage of some more advanced features of FuncGodot's entity and configuration systems, it's helpful to study up on the FGD language that powers it.

TrenchBroom and Quake

Dumptruck_ds's TrenchBroom Tutorials
Some of these tutorials are a little bit dated as some features have changed a little, but overall these will teach you not only the fundamentals but get you acquainted with some of the more advanced techniques and improve your TrenchBroom workflow. You can also learn more about Quake map scripting, which might inspire some design patterns for your own game.

Slipseer's TrenchBroom Tutorials
YouTube channel with some great tutorials. Not a lot on here, but what's here can definitely level up a novice mapper's skill set.

Slipgate Sightseer
A very active and well done Quake modding and mapping site. Easy to navigate layout. Run by the best in the business. Check it out, even if just to get inspired by all the possibilities with TrenchBroom mapping. It's not just a lot of brown blocks (though those are cool, too).

id Software GitHub Repository
An incredible source for study. John Carmack began a trend a long while back of releasing the source code for id Software games, and this repository stretches as far back as Wolfenstein 3D. The most relevant repositories for you might be the Quake 1, 2, and 3 sources. Also provided are the Quake 1 QC files, the code for almost the entirety of the gameplay.

Quake Mapping Discord
Discord server where the best of the best hang out. If you have questions on Quake or TrenchBroom, mapping or modding, the people here can teach you everything you want to know about it.

J.A.C.K. and Half-Life

Lymphoid's Half-Life Mapping Tutorials
Not as hilarious as Dimbeak's tutorials but Lymphoid's videos are a few years more relevant and have a fairly slower pace. Not everything is applicable to the J.A.C.K. > FuncGodot > Godot pipeline, but what can't be used directly could still be useful in knowing for your own implementations.

Vhetutor's Tutorials
Many of these tutorials are for Hammer, but they give pretty great overviews of how scripted sequences are designed in a Half-Life map. Once again, not directly applicable but these tutorials could be very informative in trying to design your own scripted sequences, no matter your map editor.

The Whole Half-Life
A site dedicated to Half-Life level design and modding. Deep dive into the knowledge base of Half-Life modding, raid its vaults, and escape with new design patterns that you can use for your FuncGodot workflow.

Half-Life Source Code
Another incredible source for study. Half-Life does a lot of really interesting things with its design. Definitely take a peek through and see what you can learn.

Useful Tools

Aseprite
The most important game dev tool you will ever purchase. It's a wonderful pixel paint program that trivializes sprite work and animation.

Krita
Free and open source paint application that serves really well as an Adobe Photoshop alternative. I use this for my higher res image assets and concept art.

Material Maker
Really incredible open source procedural materials authoring tool made with Godot, available at the variable cost of name-your-own-price. Highly recommended by the community.
